Rotary Pumps
ROTARY PUMPS
The Motorized Rotary Pumps come with a positive displacement of oil. Made suitable for different applications such as lubrication of headstocks, Gear Boxes, Low-Pressure Hydraulic Power Packs recirculating units etc. These pumps are suitable for oil with a wide range of viscosity of 30-400cst/40 c.

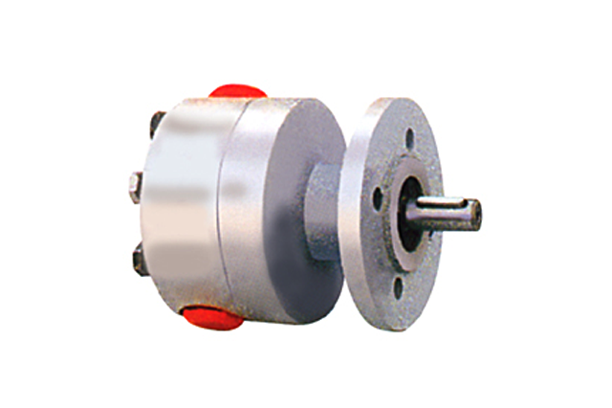

Bare Type Rotary Pump

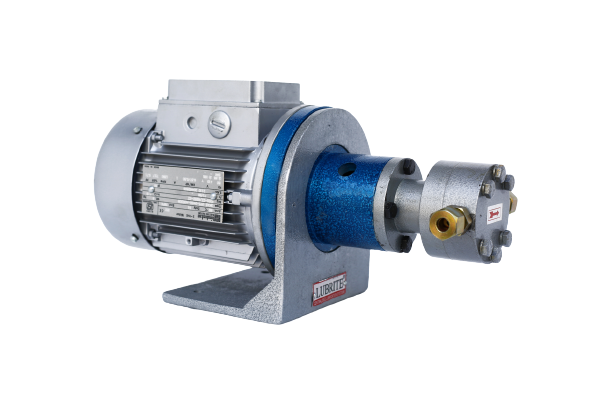

Motorized Rotary Pump
RP Technical Specifications

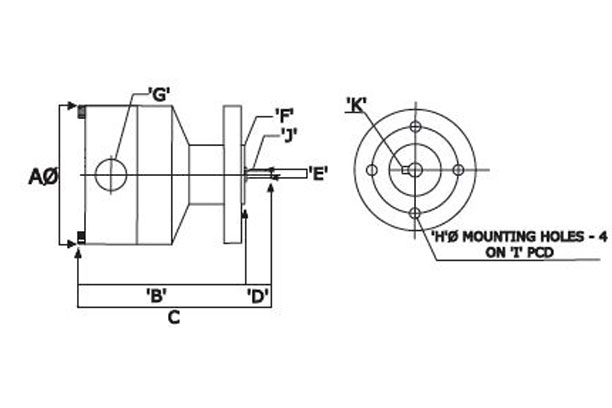

| Model | LPM @ 1500 RPM | DIMENSIONS IN MM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | ||
| RP-1 | 1 | 60 | 74 | 95 | 22 | 10 | 35 | 1/4"X19 BSP | 6.5 | 45 | 20 | 3X14 |
| RP-3 | 3 | 60 | 78 | 102 | 22 | 10 | 35 | 1/4"X19 BSP | 6.5 | 45 | 20 | 3X14 |
| RP-5 | 5 | 80 | 96 | 130 | 24 | 13 | 45 | 1/4"X19 BSP | 8.5 | 65 | 25 | 3X14 |
| RP-10 | 10 | 80 | 104 | 140 | 36 | 13 | 45 | 3/8"X19 BSP | 8.5 | 65 | 25 | 3X14 |
MLRP Technical Specifications
| Model | Pump Discharge | Working Pressure | Motor | Overall Dimensions LxBxH(in mm) |
Mounting Center LxBxH(in mm) |
Port THD Size |
|---|---|---|---|---|---|---|
| MLRP-1 | 1 LPM | 15KG/SQ.CM | 3PH, 415V, 0.18kw | 330x140x190 | 90 | 1/4” BSP |
| MLRP-3 | 3 LPM | 20KG/SQ.CM | 3PH, 415V, 0.18kw | 340x140x190 | 90 | 1/4” BSP |
| MLRP-5 | 5 LPM | 25KG/SQ.CM | 3PH, 415V, 0.37kw | 425x160x220 | 120 | 1/4” BSP |
| MLRP-10 | 10 LPM | 30KG/SQ.CM | 3PH, 415V, 0.37kw | 435x160X220 | 120 | 3/8” BSP |
